BVEM 130kW electrical vibroflotation compaction pile driving machine
| The Top Feed Electric Vibroflot Spec. |
| Type | Power
(kW) | Rated current(A) | Max rotation speed(rpm) | Max amplitude
(mm) | Vibration power(kN) | Weight (kg) | Outer diameter(mm) | Length(mm) |
| BJV130E-377 | 130 | 255 | 1450 | 19 | 180-276 | 1900 | 377 | 2760 |
Vibroflotation advantage
The deep vibro techniques present a very versatile ground improvement method that can be adjusted to a wide variety of ground conditions and foundation requirements. Its execution is comparatively fast even if large volumnes of soil are to be improved and subsequent structural works can follow very quickly.The soil improvement enables the contractor to utilise standard shallow footings which,in turn,leads to additional savings.
Another advantage is the environmental friendliness of vibro techniques,as natural and in situ materials are used. In addition, only a comparatively small quantity of soil is removed during the process.
Vibroflot manufacturer profile (BVEM)
China first use of 75KW vibrator for the 30-meter depth sand soil treatment(three gorges project)
China first use of hydraulic vibrator for the treatment of the 240-meter chimney foundation
China first use of hydulic vibrator for the treatment of 32m depth foundation of hydraulic power station
The first one in China who treated the base of oil storage tank with a diameter of more than 60m by vibroflotation method
With 30 years experience of vibroflotation industry, BVEM researched and developed a variety of electric vibroflots motor power from 30 kw to 260 kw. BVEM’s vibroflots has complete specification model which makes widely using of range. The quality of the equipment and performance have already achieved the domestic industry leading level. Through the application of hundreds of domestic and international projects, including the Yangtze River Three Gorges Soft Ground Treatment Project, The Hong kong-Zhuhai-Macao Bridge Project, Dubai Palm Island Project,etc, BVEM has developed to be Asia's larger electrical vibroflots equipment manufacturers, and are being highly recognized by domestic and international clients.
Product Tags:
|
|

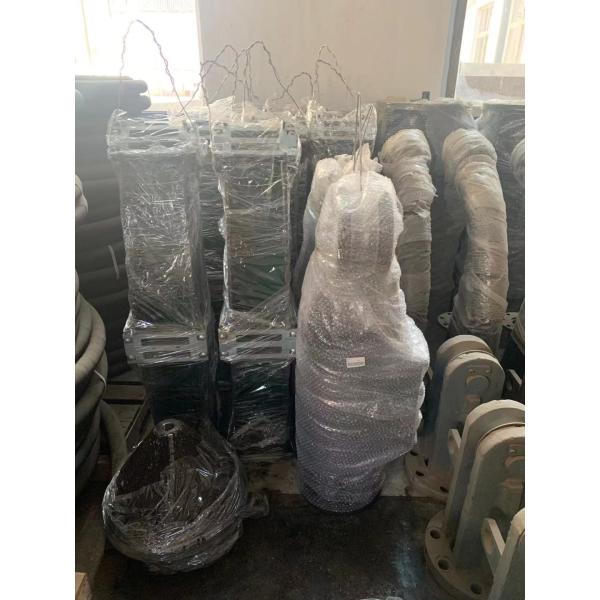

BVEM 130kW Electrical Vibroflotation Compaction Pile Driving Machine Images
|
